“Carrying the designation of the brand’s flagship status, the M75 has been cloaked in a mighty exterior form from bow to stern.”
Tom Barry-Cotter
Head of Design
Maritimo M75
Defined by the ultimate in Maritimo style, engineering, power and outstanding efficiency, everything combines to establish the uniquely commanding stature and natural leader of our fleet.
The Australian built Maritimo M75 motor yacht is a true head-turner right down to the finest detail. Step aboard and you will be immediately captivated by its space – easily accommodating your family in style, safety and comfort for some genuine blue water passage making. With four main cabins, including a full beam master and full beam ensuite plus a massive galley with domestic sized refrigerators and Miele appliances, you can be the master entertainer or just relax surrounded by family and friends.
The M75 upper cockpit and adventure deck creates an incredibly versatile hub for lounging, cooking, adventuring or storage, with plenty of room to spare. The defining feature of the Maritimo M-Series is its recognisable enclosed flybridge skylounge with internal staircase – providing the largest indoor outdoor living space of any m-series model
When serious cruising is on the agenda the M75 excels. Power varies from twin 1150 horsepower engines through to a twin 1625 horsepower option. Maritimo’s super efficient shaft drive and hull design technology ensure the best fuel consumption in its class. The perfect example of where engineering and efficiency combine to deliver the ultimate performer.
UNPARALLELED DECK SPACES
Step aboard, and the first impression the M75 emanates is certainly that of unsurpassed amounts of deck space. The M75 adventure deck creates an incredibly versatile hub for lounging, cooking, adventuring or storage, with plenty of room to spare.
FULLY ENCLOSED FLYBRIDGE

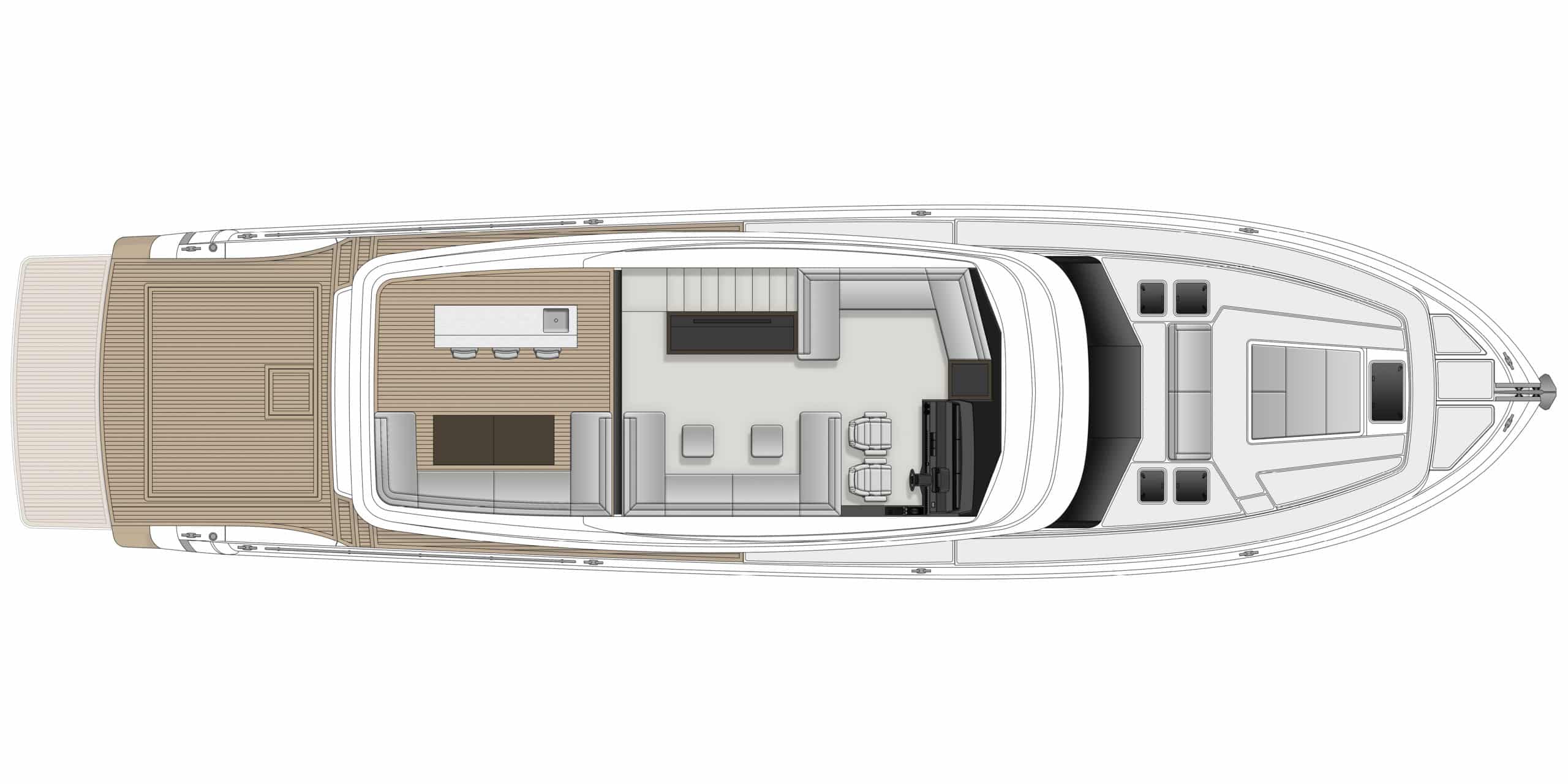

The M75’s climate controlled flybridge skylounge offers unprecedented amounts of interior space through the design of the exterior wings melded within the swept contours of the flybridge’s exterior form. The space incorporates a pair of distinct internal lounging areas, with a forward cruising lounge and aft TV lounging, which can both conveniently convert to additional sleeping berths if required. Beyond the flybridge sliding glass doors, the flybridge balcony deck offers further unprecedented amounts of deck space.
FULL BEAM MASTER

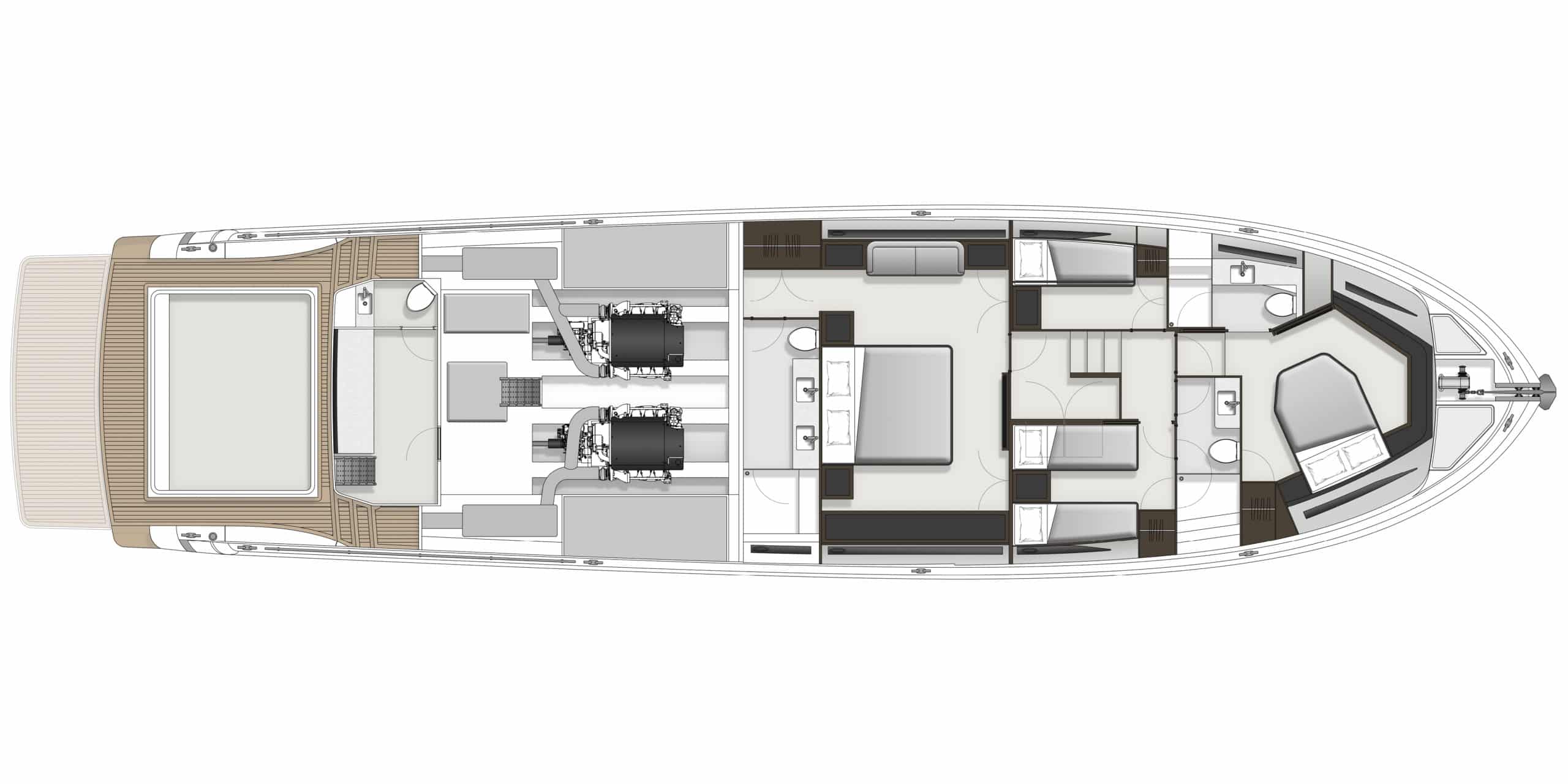

It is midships where the M75’s grandeur can be completely experienced. The master stateroom is centered upon a centerline king size bed with cavernous rear ensuite and walk-through robe area. Storage is prevalent with double full height hanging robes, double half-height robes, and copious amounts of customizable drawer, desk and lounge storage available.
POWER OPTIONS

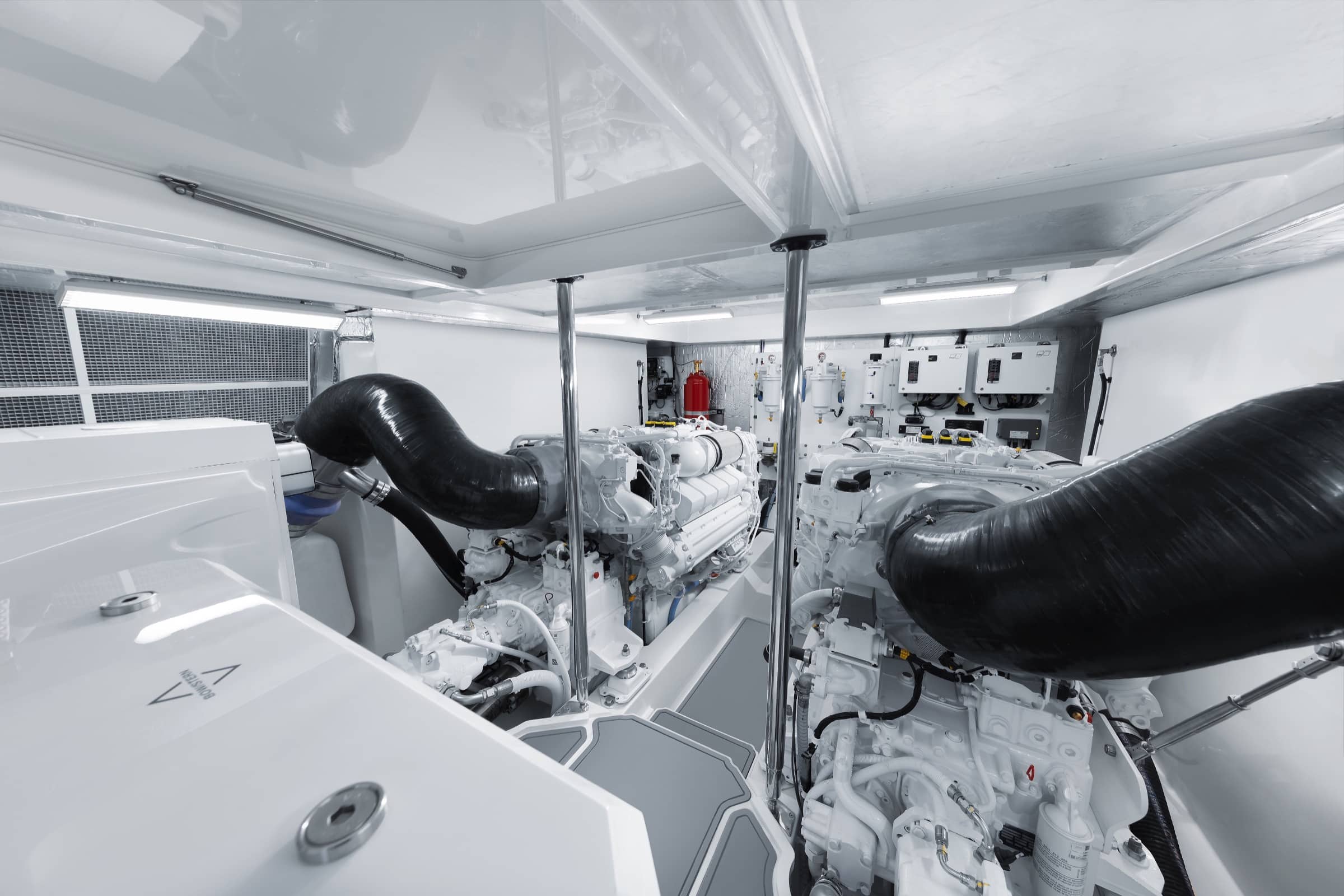

The Hull design and engineering are centered on straight shaft drive technology with the standard Scania Di16-1150MHP power units transferring power to the water via an ultra-efficient, shallow straight shaft angle to the 5x Blade Nibral Propellers. The M75’s low angle straight shaft drives also reduce overall draft to a very versatile 1.5m (4’11”) opening an array of anchorage possibilities within any region. Engine upgrade options include MTU 10V2000M86 1380MHP and MTU 10V2000 M96L 1625MHP power units.
Flybridge
Galley
Accommodation
Specifications
LENGTH OVERALL
23.07 M
75' 8" FT
HULL LENGTH (ISO)
22.86 M
75' FT
BEAM
6 M
19' 8" FT
DRAFT
1.7 M
5' 9" FT
DRY WEIGHT
55,200 KG
121,695 LBS
FUEL CAPACITY
10,000 L
2,641 US GAL
WATER CAPACITY
1,400 L
370 US GAL
HOLDING TANK CAPACITY
400 L
105 US GAL
UPPER COCKPIT AREA
16.3 SQ M
175 SQ FT
LOWER COCKPIT AREA (swim platform not included)
15.4 SQ M
165 SQ FT
SLEEPING CABINS
4 STANDARD
SLEEPING CAPACITY
8 STANDARD
10 OPTIONAL
ENGINES (STANDARD)
SCANIA DI16 1150 MHP
GENERATOR
22 KW 50 HZ
PLAY FILM
E-Brochure
Get an in-depth look at the Maritimo M75
luxury details and design features.
